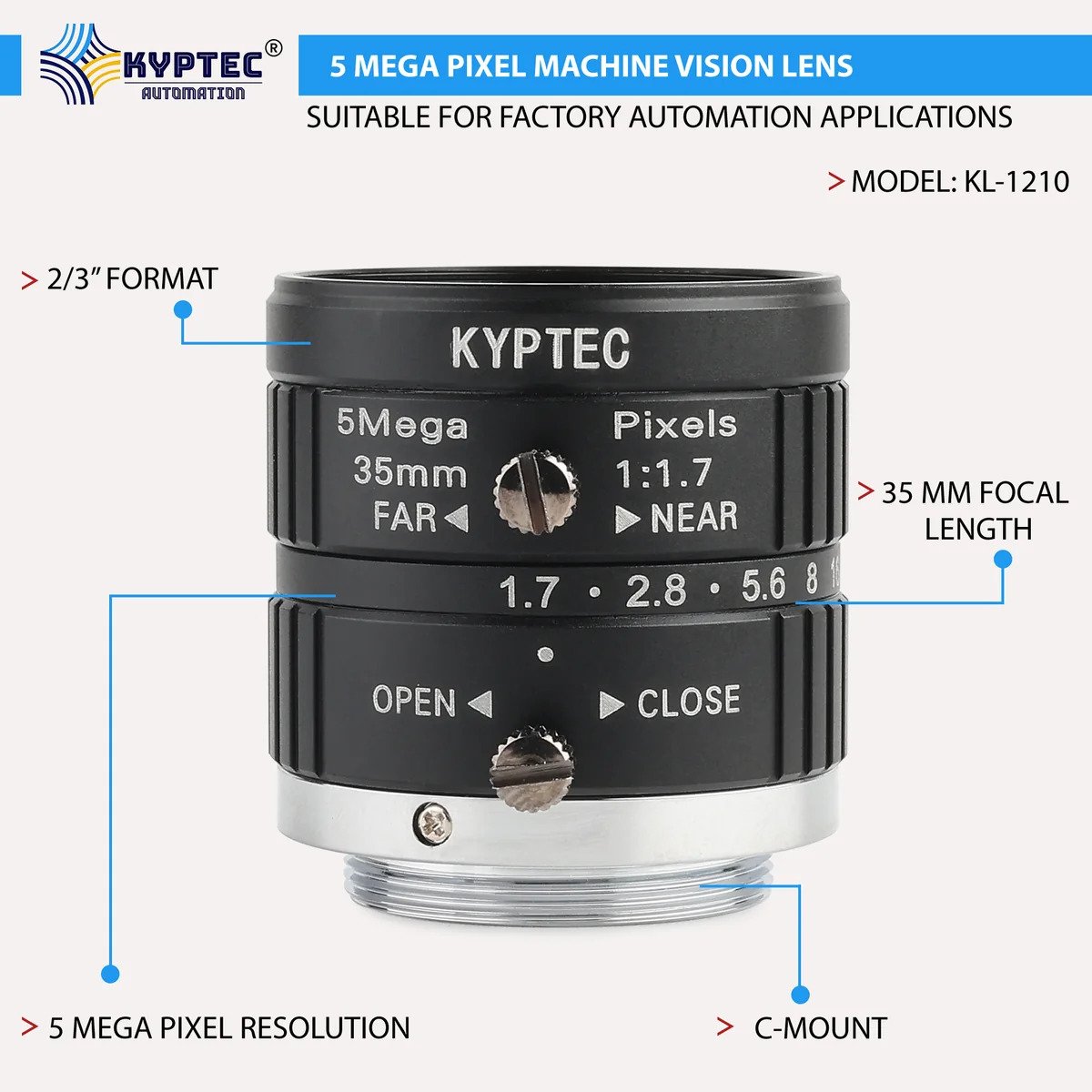

35 MM 5 MP Machine Vision Lens, F1.7–16, 2/3-Inch C-Mount

Kyptec Automation® offers a 35 MM 5 Megapixel Machine Vision Lens developed for industrial cameras using a 2/3-inch image format. The lens features a C-mount interface and an F1.7–16 aperture range, providing a combination of medium-long focal length, useful light-gathering capability and adjustable depth of field.

At 35 MM, the lens provides a narrower angular field than shorter 8 MM, 12 MM, 16 MM or 25 MM alternatives on the same sensor. This allows the optical system to concentrate more sensor pixels over a smaller object area or operate at a greater working distance for a given field width.

The 5 MP optical resolution makes the lens well matched to machine vision systems where moderate-to-high image detail is required without unnecessarily specifying optics intended for substantially higher-resolution sensors. Properly matching lens resolution to camera resolution can create a more balanced imaging chain in which neither component becomes an unnecessary system constraint.

The F1.7 maximum aperture provides good light throughput, while stopping down toward F16 increases control over depth of field where available illumination permits. Combined with the 2/3-inch image format, these specifications provide a practical optical platform for professional industrial camera integration.

Product Webpage Link

https://www.kyptec-automation.com/products/35-mm-machine-vision-lens-with-5-megapixel-2-3-format-lens
