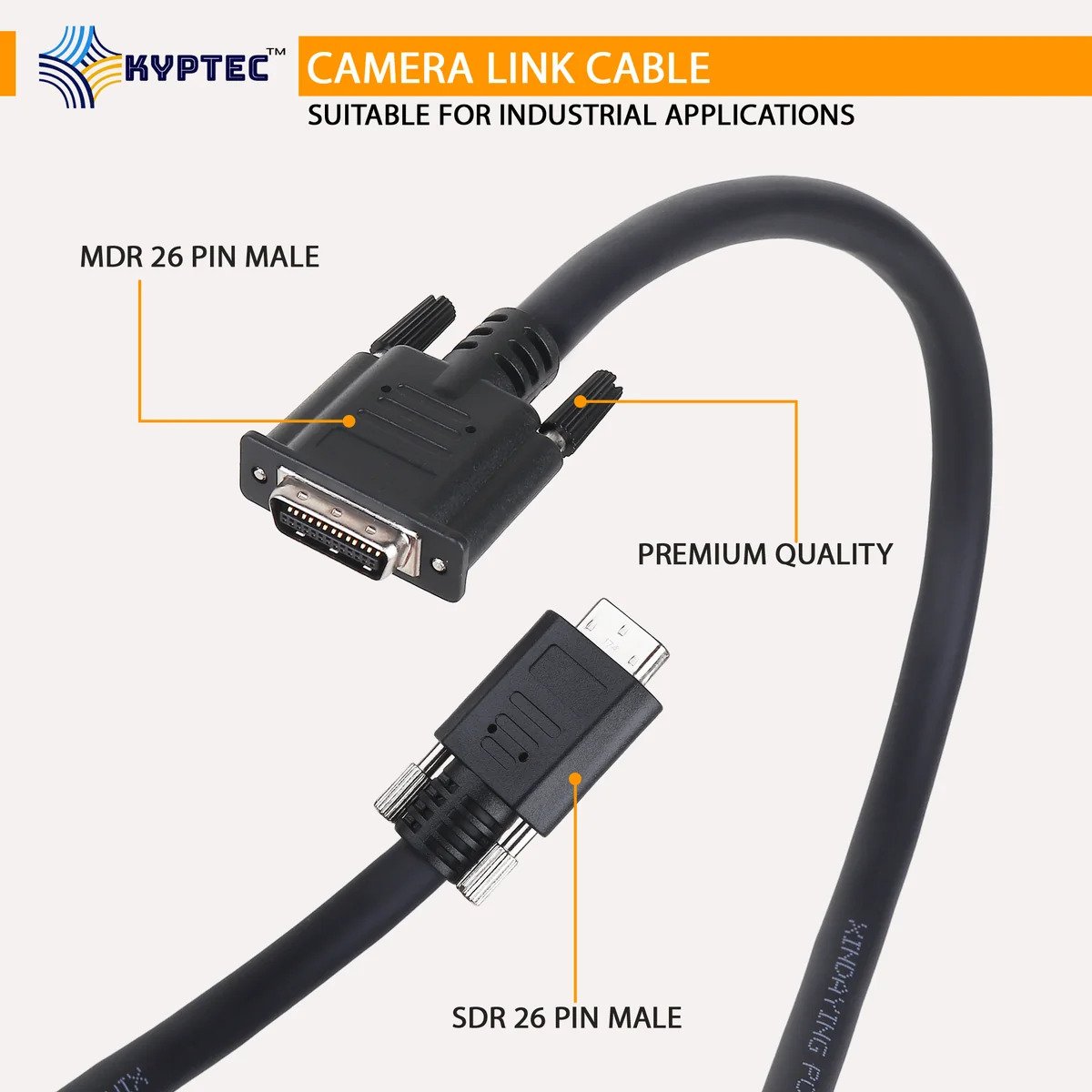

SDR-26 Pin Male to MDR-26 Pin Male Industrial Camera Link Cable – Kyptec Automation®

Kyptec Automation® offers an Camera Link cable with an SDR-26 Pin Male connector on one side and an MDR-26 Pin Male connector on the other for professional machine vision systems that require interoperability between different Camera Link connector formats. This configuration provides a direct connection between compatible industrial cameras and image-acquisition devices where the camera-side and host-side interfaces use different 26-pin Camera Link connector types.

The cable is designed for high-bandwidth industrial imaging and is capable of carrying both image data and Camera Link control signals between compatible devices. It uses 24 AWG oxygen-free copper conductors together with a highly flexible PVC cable structure, supporting dependable signal transmission while providing the mechanical flexibility needed for integration inside industrial equipment. Both SDR-26 and MDR-26 connectors are molded and incorporate screw retention, helping maintain a secure physical connection during machine operation.

The SDR-26P Male to MDR-26P Male arrangement is particularly useful when machine vision system designers need to connect equipment that does not use matching Camera Link connector formats at both ends. Rather than relying on additional adapters or intermediate connections, the cable provides the required interface conversion within a single industrial cable assembly.

Kyptec Automation® offers this Camera Link cable in 2 Meter, 3 Meter and 5 Meter lengths, with alternative cable lengths available on request. Its combination of 26-pin SDR and MDR connectivity, secure screw locking, 24 AWG construction and anti-interference capability makes it suitable for industrial machine vision cameras, scientific imaging systems, product testing, image recognition and factory automation installations.
